- A modern version of the Tune-o-matic bridge for solidbody guitar
- The metal saddles have helpful starter grooves to guide your slotting files
- Intonation screws are retained by mini hex nuts
- Includes threaded thumbwheel studs and bushings
- String spread is 2-1/16", and post spacing is 2-29/32"; post threads are M8 x 1.25

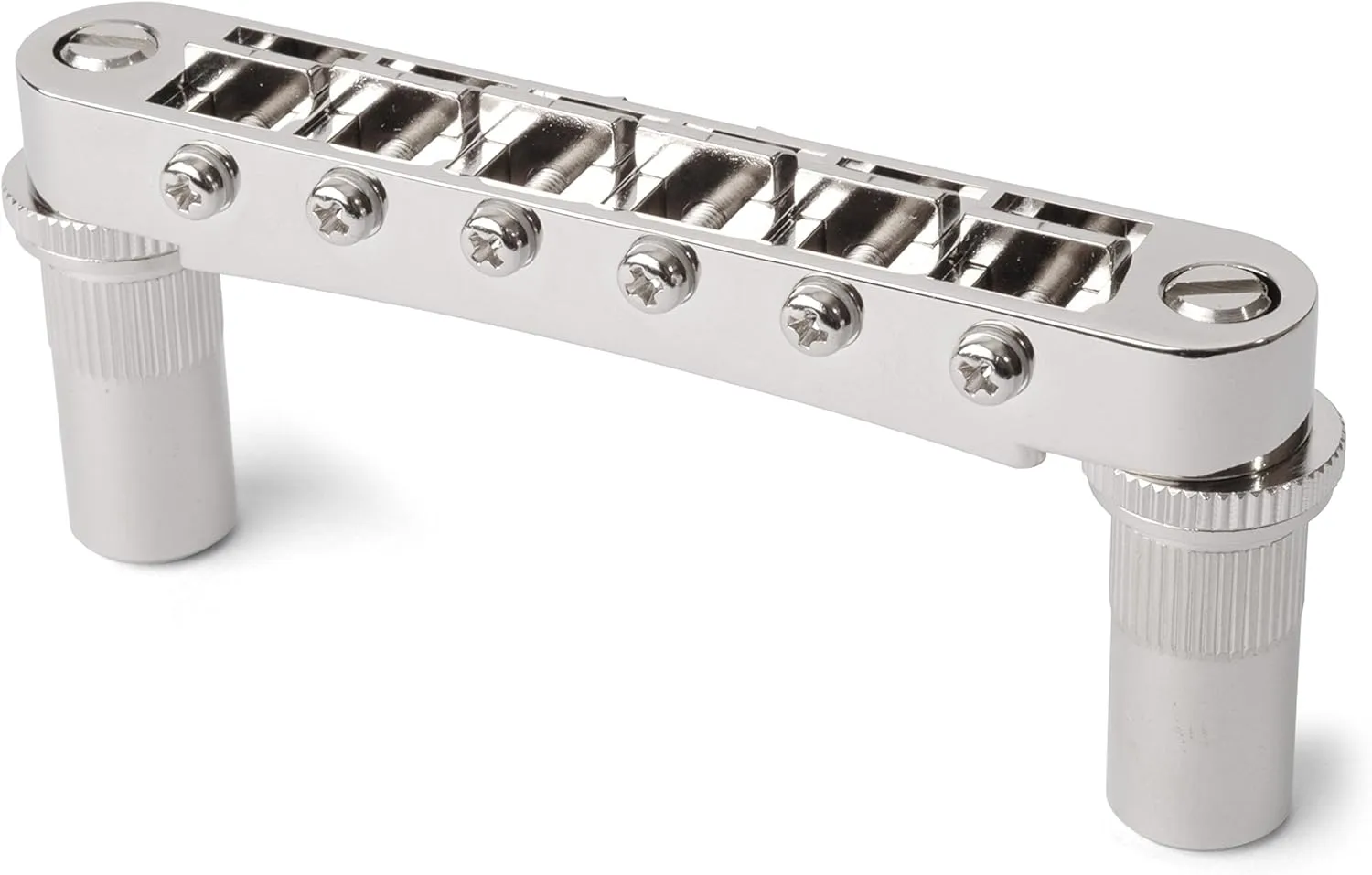

The Gotoh Tune-o-matic Bridge with Studs/Bushings is a modern version of the Tune-o-matic bridge for solidbody guitar.
The metal saddles have helpful starter grooves to guide your slotting files. Intonation screws are retained by mini hex nuts. Includes threaded thumbwheel studs and bushings. Use an 11mm drill bit to install the bushings.
Measurements:
- String spread: 2-1/16" (52.39mm)
- Saddle radius: 12" (304.80mm)
- Post spacing: 2-29/32" (73.82mm)
- Post threads: M8 x 1.25
About bridge & tailpiece measurements:
- String spread is the distance between the centers of the outer strings on a bridge or tailpiece.
- Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.
- Stud/post spacing is the distance between the centers of the mounting posts of a bridge or 'stop' tailpiece.
