- A popular modern version of the Tune-o-matic for solidbody guitar
- Saddles are pre-notched with individual saddle intonation screws retained by mini hex nuts
- Saddle radius: 12"
- String spread is 2-1-16", and post spacing is 2-29/32"; stud threads are M4 x .7

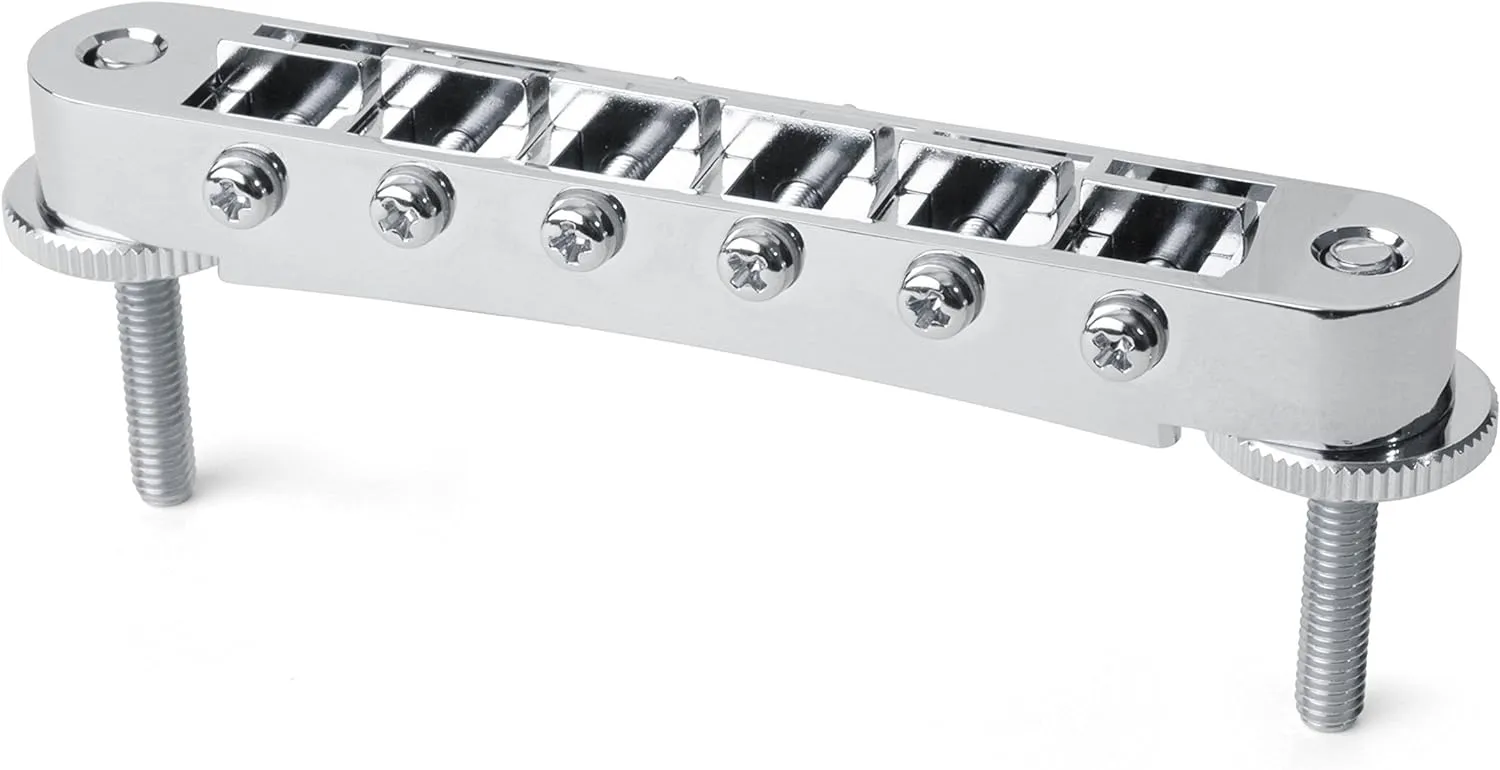

This Gotoh Tune-o-matic Bridge with Standard Posts is a popular modern version of the Tune-o-matic for solidbody guitar. Saddles are pre-notched, with individual saddle intonation screws retained by mini hex nuts.
Knurled height adjustment thumbwheels and threaded mounting posts are included.
Specs:
- String spread: 2-1/16" (51.99mm)
- Saddle radius: 12" (304.80mm)
- Stud spacing: 2-29/32" (73.99mm)
- Stud threads: M4 x .7
About bridge & tailpiece measurements:
- String spread is the distance between the centers of the outer strings on a bridge or tailpiece.
- Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.
- Stud/post spacing is the distance between the centers of the mounting posts of a bridge or 'stop' tailpiece.
